iNAP One Sleep Therapy System

iNAP® Lite Sleep Therapy System

Somnics iNap Sleep Therapy Intro

Information
iNAP® Sleep Therapy System is designed to treat Obstructive Sleep Apnea (OSA) in adults. When using iNAP® Sleep Therapy System during sleep, it provides a pressure gradient within the oral cavity and the pressure gradient pulls the tongue toward upper palate and also pulls the soft palate forward.

By moving the tongue and the soft palate in a forward direction, the patency of the upper airway near the pharynx is maintained to prevent sleep-disordered breathing. This reduces or eliminates the upper airway obstructive that causes OSA and allows each patient with OSA to enjoy deep, refreshing and uninterrupted sleep.
Specification

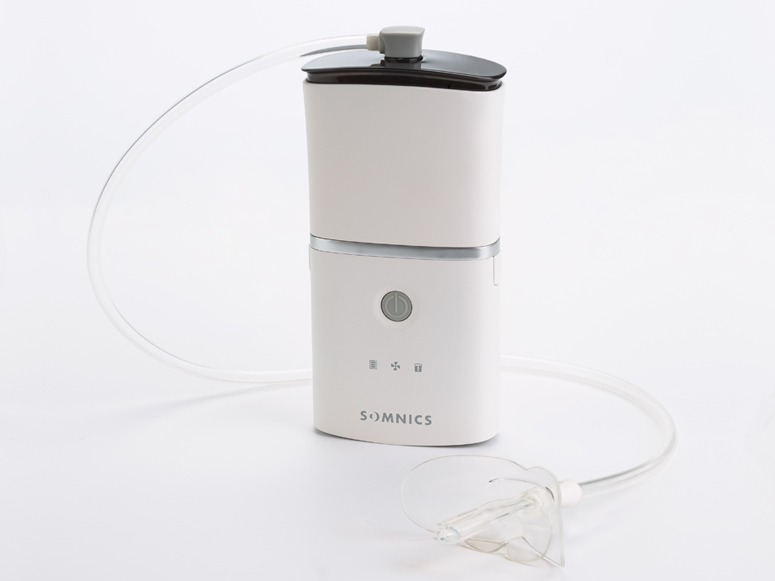

iNAP® One
Dimensions (Console and Container):152 x 80 x 36 mm
Weight(Console and Container):About 200g

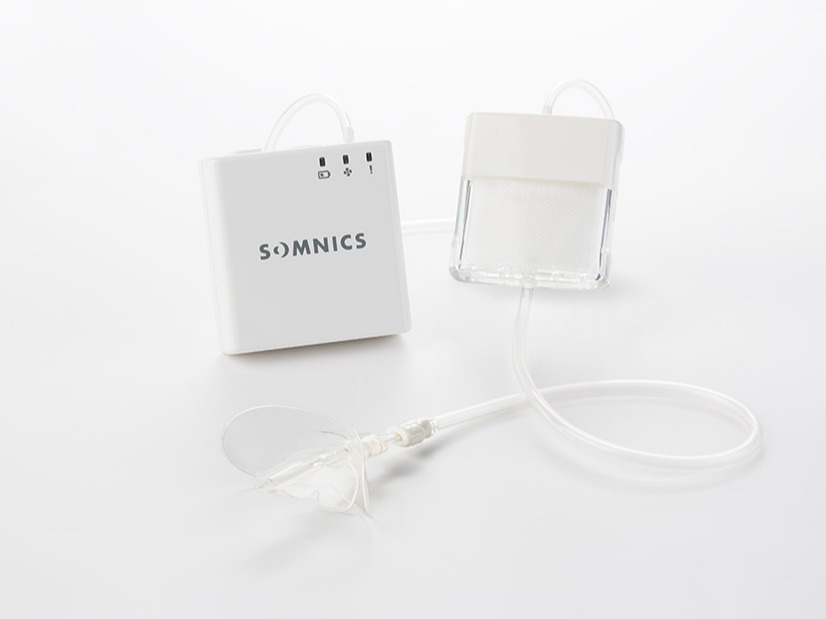

iNAP® Lite
Dimensions (Console and Container):80 x 85 x 22 mm
Weight(Console and Container):About 100g

iNAP® Care App
iNAP® Health Platform

Benefits

  • Natural Breathing iNAP® allows you to breathe through the nose naturally without blowing air into the body while sleeping.
  • Portable and Rechargeable iNAP® is battery powered and ultra-portable for any situation, such as traveling by flight, camping, and mountaineering.
  • Discreet and Quiet iNAP® console is silent when negative pressure is reached and maintained, allowing you to sleep peacefully.
  • Operation Without Mask iNAP® works without having to wear cumbersome facial masks, belts or large hoses. iNAP is both easy-fitting and non-intrusive.
  • Excellent Wearing Comfort iNAP® has a soft and flexible oral interface with thermal-memory material and one-size-fits-all design.
  • Portable and Travel-Friendly iNAP® is incredibly light, small and compact. It fits in one hand and is therefore very travel friendly.

Business Partners

Taidoc Technology Corp.
Soteria Biotech

Success Stories

2020
- RESI Innovation Challenge First Prize, USA

2019
- European Product Design Awards, Silver, EU
- Asian Science Park Association ASPA Award, Grand Prize, Asia
- Hsinchu Science Park Innovative Product Award, Taiwan

2017
- 25th Taiwan Excellence Award, Taiwan
- 45th Salon International Des Invention, Geneva: Gold (iNAP One); Silver (iNAP Lite)

2016
- iF Design Award, Germany
- A’ Design Award, Italy
- ERS Point Award, UK
- Hsinchu Science Park Innovative Product Award, Taiwan
- Taipei Biotech Awards, Innovation Silver Medal Award, Taiwan
- Biotech Industries Innovation & Excellence Silver Award, Taiwan
- National Invention Award, Taiwan

13th National Innovation Award, Taiwan

Clients

Multi Clinical Study Center:
(1) Taiwan: China Medical University Hospital 、 Shin Kong Memorial Wu Ho-Su Hospital、Chang Gung Medical Foundation、 Veterans General Hospital、MacKay Memorial Hospital。
(2) Germany:INTERSOM、Alfred Krupp Krankenhaus、HELIOS Klinik Ambrock、Somnolab、American Sleep Clinic、Krankenhaus Bethanien。
(3) USA:Johns Hopkins Sleep Center。

National/International Medical Device Legal Permit No.

- Europe ISO 13485:2003, EN ISO 13485:2012 & ISO 9001:2008
- CE 1639
- Taiwan TFDA 006011, 006535
