Information

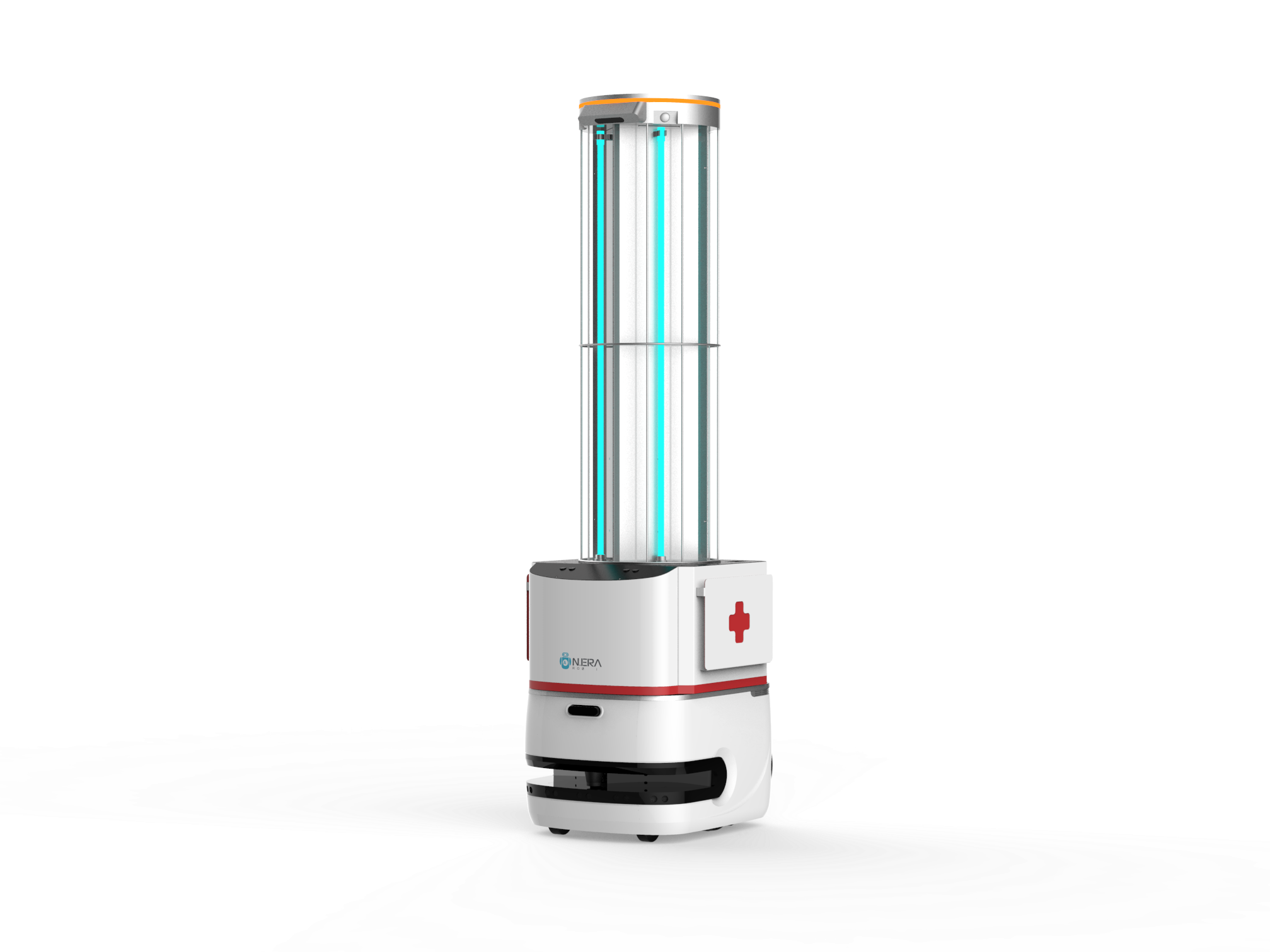

New Era AI Robotic (NewERA) M01-UVC Disinfection Robot integrates the delivery AMR (Autonomous Mobile Robot) with high output UVC module (440W) with safety certifications from CE,UL and CSA. This solution equips with indoor autonomous navigation technology with obstacle avoidance to disinfect areas like patient room, surgical room, or meeting room. The solution not only eliminates the virus and bacteria to keep the environment safe but also reduces the possibility of cross-infection during the pandemic outbreak. It also dramatically reduces the loading of health care workers since the robot can move around the table or bed autonomously for thorough disinfection. It also equips with safety sensors to cut the light off immediately when detects a human intrusion.
-M01 AMR is EN60601 approved as medical electrical equipment.
-Disinfecting area of 25m2 in 10 min with 99.9% germicidal efficiency.
-Indoor autonomous navigation with obstacle avoidance and path planning.
-UVC module with built-in battery for max 3 hours continuous working.
-Auto return for charging when low in power.
-Fleet management system to monitor and tracking robot status.
Specification
M01 AMR Specification
Platform OS: Windows10 + Linux(Ubuntu)
CPU: Dual Computers for Maximum Efficiency
Battery: 25.2V/34.8Ah; 876Wh, 7S12P
Run/Charge Time: 8-10 hours / 4-6 hours
Max. Speed 0.8 (m/s)
Sensors: LiDAR x 1, Ultrasonic x 7, IR x 2
WiFi: IEEE a/b/g/n (2.4/5GHz)
Overall Dimension: W524 x L590 x H1786 (mm)
Weight: 135 kg (298 lbs)
UVC Specification
Light Tube: 42" of 110W x 4pcs
Battery: 48V/52Ah
Operating /Charge Time: 3 hours/3 hours
Sensors: PIR x 7, RealSense x 1, Ultrasonic x 2
Benefits
Using ultraviolet radiation (UVC) for environmental disinfection has been proven to be the most practical and effective solution. But it would require dedicated personnel to move the equipment around the room to completely disinfecting the room. M01-UVC from New Era Ai Robotic utilizes AI ability such as indoor autonomous navigation with obstacle avoidance to deliver the same performance, thanks to the 440W high output UVC emitters. Our solution provides 3 hours of continuous operation and an exclusive APP will receive notification in the case of lower battery, human intrusion when light is on; and when completing task.
Success Stories
M01 AMR is approved by European Standards EN60601 as medical electrical equipment
UVC emitters are certified by UL, CE, CSA
